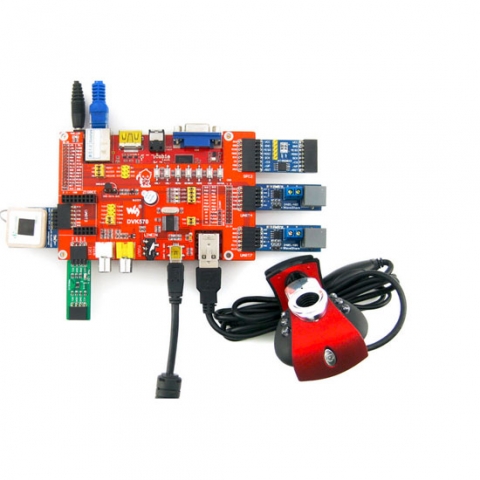

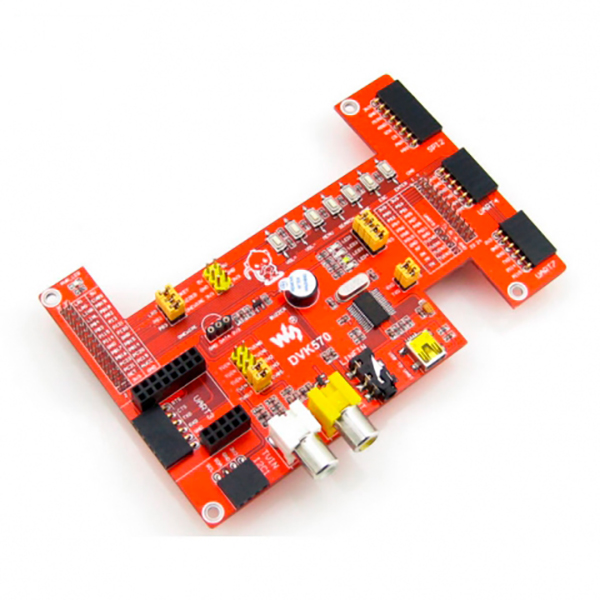

DVK570 kit for Cubietruck - плата расширения для Cubietruck

Описание

Загрузить необходимую документацию вы можете тут: Wave Share website  и  Cubieboard files server.

Интерфейсы:

1) CUBIETRUCK interface: For connecting CUBIETRUCK
2) UART0 interface: For easily connecting various serial port modules
3) I2C interface:Shenzhen Waveshare Electronics Co., Ltd. www.waveshare.com 2 easily connects to I2C modules such as PCF8563 RTC Module, MAG3110 Board Module, etc
4) TVIN interface: For video input
5) TVOUT interface: For video CVBS output, can connect to devices such as TV, etc
6) LINEIN interface: For audio input
7) USB interface: USB TO UART（PL2303TA）
8) UART interface: Easily connects to various modules with UART peripherals, such as RS485 Board (3.3V)、GPS modules, etc
9) SPI interface: Easily connects to all kinds of modules with SPI peripherals, such as AT45DBXX Dataflash modules, etc
10) ZIGBEE interface: For easily connecting to core board Core2530, used with ZB500.
11) ONEWIRE interface: Easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
12) 5V/3.3 V power input/output: Usually used as power output, also common-grounding with other user board
Компоненты:

 13) PL2303TA: USB TO UART MCU
14) 12M crystal oscillator: PL2303TA crystal oscillator
15) Buzzer
16) User LED: 4 different color user LEDs
17) Power LED
18) AD Keypad: 7 ANDROID common keypads：VOL+、VOL-、MENU、SEARCH、HOME、ESC、ENTER
Джамперы
19) ONEWIRE jumper
20) Buzzer jumper
